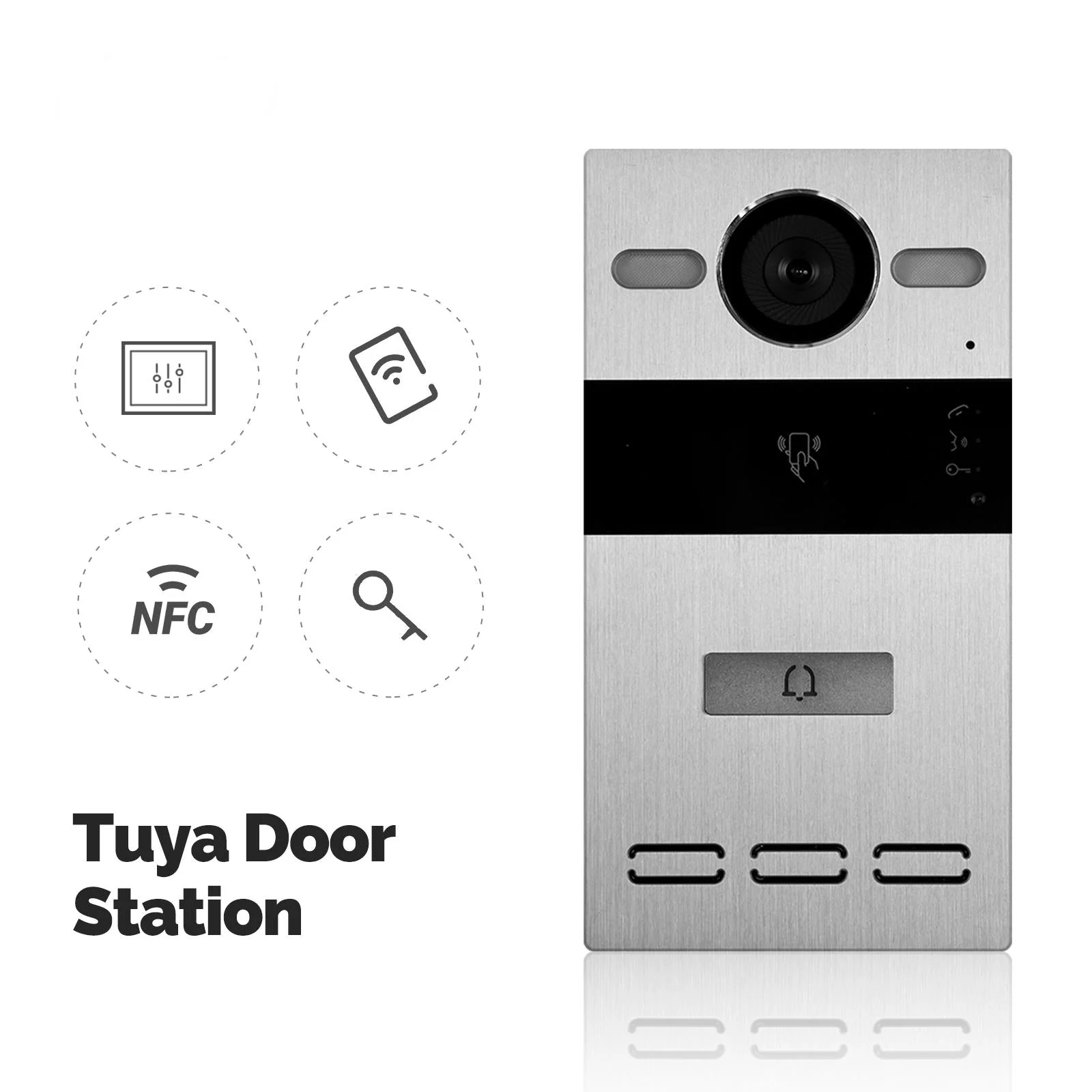

This door station MOES Tuya is a multifunctional device that will become the basis of your smart access control system. It combines the functions of an intercom, doorbell, unlocking device and alarm system.

Key Features

• Video intercom. Thanks 2 megapixel HD camera you can communicate with visitors in both directions for free. The camera provides clear night vision using automatic LED backlight, which turns on in the dark for a better image.
• Access Control. The station supports several door unlocking methods:
• Using the central control panel. If the station is connected to the Tuya 10.1-inch control panel (wired or wireless), you can open the door directly from the panel screen.
• Using IC cards. The kit includes cards that can be linked to the system for quick and convenient access.
• Security system. In case of danger, you can activate alarm through the door station.

Installation and connection

This device is designed to create a comprehensive access control system. For proper installation and wiring, you will need a technician who understands low current systems. The door station connects to various devices (such as the central control panel and door lock) according to the diagram and instructions.

System: Linux

RAM: 64 MB

ROM: 128 MB

Front panel: aluminum

Power Supply: PoE (802.3af) or DC 12V/2A

Reserve power: 1.5W

Rated power: 3.5W

Camera: 2MP, CMOS

Indicator light: 3

Wiegand port: supported

Ethernet port: 1 x RJ45, 10/100 Mbps adaptive

Door Entry: IC Card (13.56 MHz) and ID (125kHz)

Reset button: 1

RS485 port: 1

Relay output: 2

Entrance: 2

IP/IK rating: IP65/IK08

Installation: Surface Mount

Surface Mount Diameter: 168x88x34mm

Operating temperature: -40 to +55

Operating humidity: 10% to 90% (non-condensing)
