Aqara Z1 Pro turns any light source into a smart one. Install it instead of a regular switch to control the lights remotely, by voice or using automation. The built-in touch panel can be used to dim smart lights, control curtains, brightness and color of lighting. 2 colors and variations with 1, 2, 3 and 4 keys (buttons). In the model with 4 keys, the last one is wireless.

Features

Suitable for all types of lamps:

incandescent,

energy saving,

LED,

luminescent.

Touchpad

Supports gestures: single-tap, double-tap, hold and swipe. Adjust brightness, color temperature or control other Aqara devices. Adjust the sensor sensitivity (low, medium, high).

Universal keys

From 1 to 4 keys to choose from. In the model with 4 keys, one of them is wireless.

Logic mode

In the Aqara Home application, in the device card there is an option “Key Settings”, which switches the key to logical mode. This disables mechanical light control, and the key can be assigned to any automation, such as opening curtains. You can control the light through other Aqara devices, an application or voice.

Pass-through system

Link the keys of one switch to another in the Aqara Home application. For example, with Aqara Z1 Pro in a room you can control the light in the hallway.

Installation

Suitable for square socket boxes. Site preparation and installation box are required. We recommend contacting professional Aqara installers.

Protocol and compatibility

Runs on Zigbee 3.0 protocol and supports Apple Home.

Safety

The device has built-in security systems:

Fuse - protects against overloads.

Temperature detection chip - turns off the device when the temperature is above 85 ° C, preventing overheating.

Materials - the switch is made of non-flammable materials of class V0 (attenuation period no more than 10 seconds), which further ensures safety.

Relay by Aqara-Customized

High-performance magnetic latching relay providing low power consumption and reliable protection against overvoltage and stuck contacts.

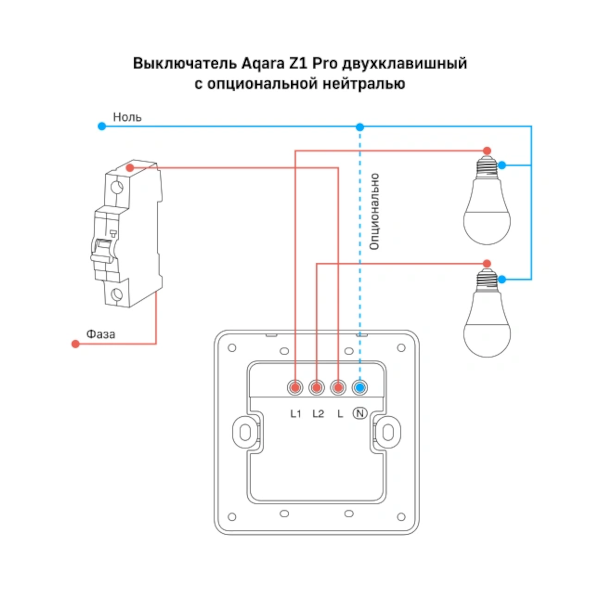

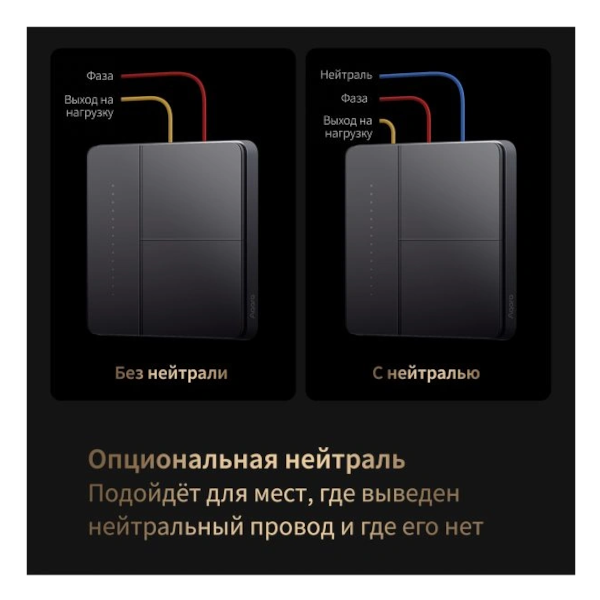

Optional neutral

Connecting the zero line to the switch is not mandatory, but expands its functionality. When connecting a neutral line, energy consumption monitoring is available and there is no minimum load requirement. Without a neutral line, the minimum load is 3 W.

Design

The switch has a stylish design: matte surface, anti-reflective coating, fingerprint resistance and easy button press.

To create automations with other Aqara devices, a Hub is required.

Connection: Wi-Fi 2.4 GHz

Compatibility: Supports Apple HomeKit, Amazon Alexa, Google Assistant

Maximum load: 3000W (for AC load)

Operating voltage: 100-240VAC

Operating temperature: -10°C to 40°C

Dimensions: 86 x 86 x 34 mm

Case material: Plastic

Color: Graphite

Control: Using the Aqara Home mobile application

Script support: Create automations and scripts in the application

Possibility of integration: Connection to other Aqara devices and smart home ecosystems

Installation: Installation in a standard switch box

Protection: Protection degree IP20

Energy efficiency: Energy class A

Interface: Touch buttons for control
