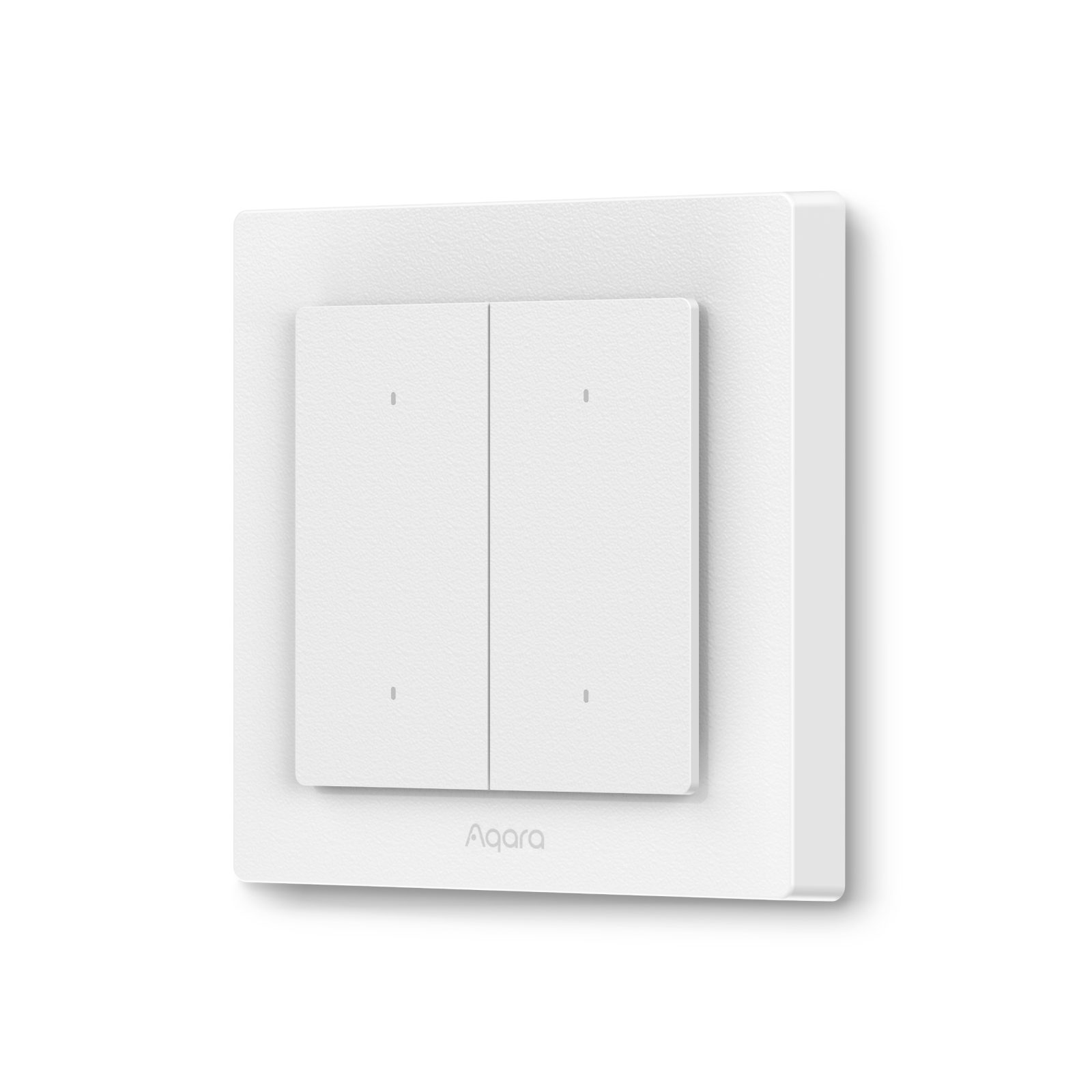

Smart switch Aqara Light Switch H2 EU

Aqara Light Switch H2 EU is a smart switch with optional neutral line connection that will help you easily control lighting and other devices in your home. It is easy to install and fits standard 55mm switch frames. Each key has 2 buttons at the top and bottom for greater control options. Make your home smart in one click.

For the device to operate in the Aqara Home ecosystem, a Smart Home Center (hub) with Zigbee 3.0 support is required. To work in the Matter ecosystem, Thread Border Router is required.

Basic functions

• Remote control: Control lighting and household appliances using a switch remotely.
• Planning: Set the lights to turn on and off automatically at the right time.
• Energy monitoring: Monitor your energy consumption and optimize it. In neutral wired homes you will receive detailed consumption reports.
• Safety: The switch automatically shuts off when overheated or overloaded, protecting you and your devices.
• Installation flexibility: Easily installed in round socket boxes and standard frames, which simplifies installation.

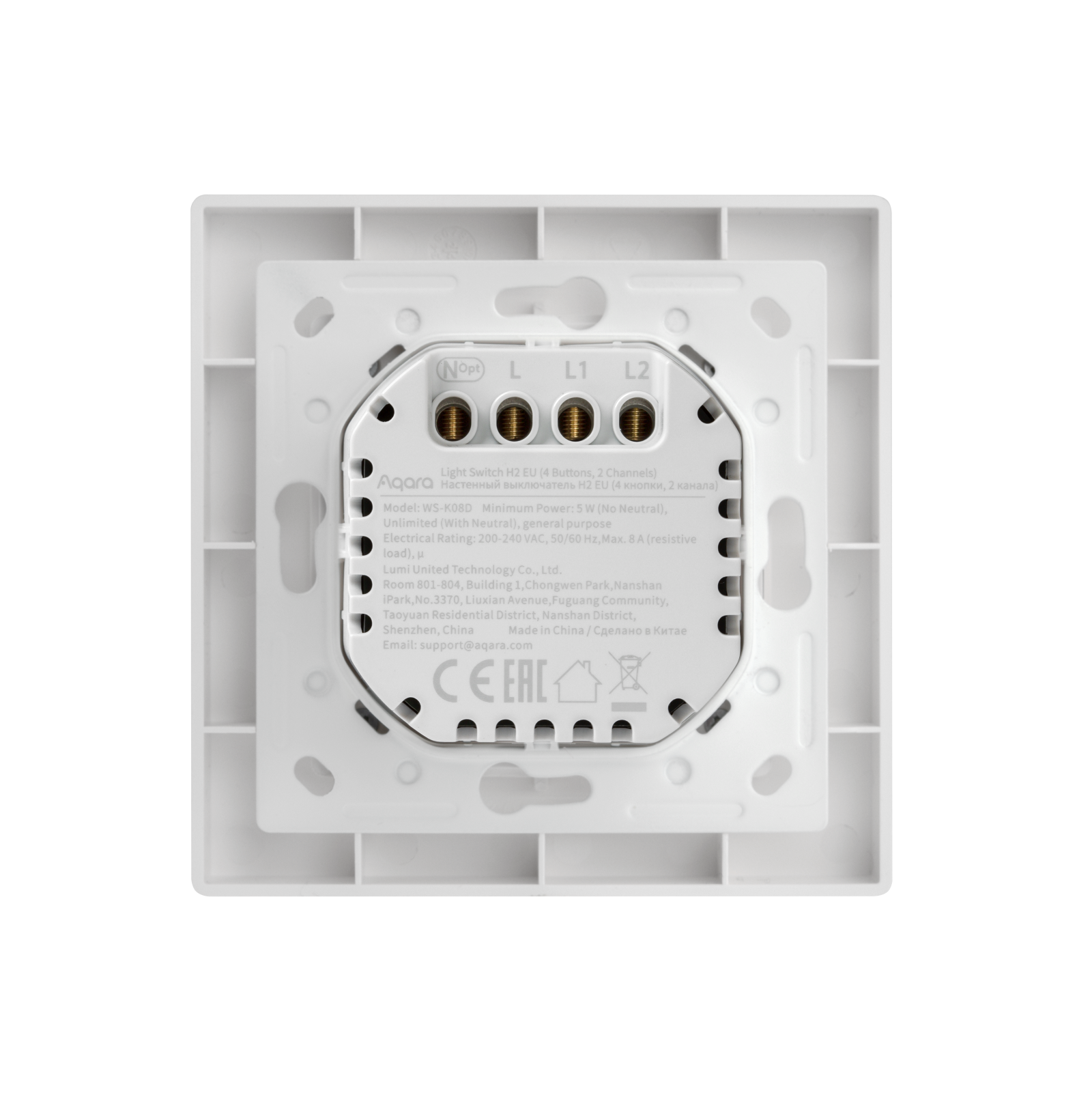

• Optional neutral line: Suitable for any wiring diagram.
• Multifunctionality: Each key is equipped with two buttons for automation variability. For example, by pressing the upper part you can control the light, and by pressing the lower part you can control the humidifier or heater connected to the smart socket.
• Universal color solutions: The set includes graphite-colored keycaps. Choose a color that will fit into your interior

Compatibility

Aqara Light Switch H2 EU supports two communication protocols: Matter over Thread and Zigbee. This means that it can work with devices from other brands.

Installation

The switch fits 55mm switch frames.

Additional features

You can choose a control mode for the keys: a simple mode for quick activation or a multifunctional mode that allows you to use different types of presses to control devices: long, short, double.

____________________________________

* To work with Matter, you need a Smart Home Center (hub) with Matter support - M3 hub.

** For the device to operate in the ecosystem, a Smart Home Center (hub) with Zigbee 3.0 support is required.

***Power monitoring, overload protection and other functions are only available for neutral wiring.

****Energy monitoring is only available for neutral wiring and is available in Aqara Home at launch, this feature may not be available in some third party Matter ecosystems but is supported by the Aqara Home device and app.

***** Overload protection only for wiring with neutral.

Automation

Scheduled lighting control.

Set up automation: if the time is 19:00, then turn on the lights in the living room through the Aqara H2 smart switch. This will allow you to automatically illuminate the room in the evening, creating a cozy atmosphere.

When we arrived home.

Set up automation with the Aqara smart lock. For example, when the door opened from 18:00 to 23:00, the lights turned on.

Light according to illumination level.

Set up automation: if the illumination level is below 100 lux and the Aqara H2 switch is turned off, then turn on the lights in the room. This will provide comfortable lighting in rooms with insufficient natural light.

Model: WS-K08D

Number of keys: 2

Number of switched lines: 2

Wireless connection: Zigbee, Thread, BLE

zigbee carrier frequency: 2405-2480 MHz

Maximum zigbee power:  ≤ 13 dBm

Carrier frequency thread: 2405-2480 MHz

Maximum Thread Power: ≤ 10 dBm

BLE carrier frequency: 2402-2480 MHz

Maximum BLE power: ≤ 13 dBm

Dimensions: 86x86x45 mm

Nutrition: 200-240 V~, 50/60 Hz

Maximum load: Up to 1920 W (up to 8 A)

Minimum load: from 5 W (if there is no connection to the zero line)

Energy monitoring: Yes (when connected to the phase and neutral line)

Operating temperature: 0C ~ +40C

Operating Humidity: 0-95% RH, non-condensing

Equipment: Switch with frame and white keys, gray keys, set of screws, user manual, leaflet

Package weight: 210 g
